Diodes Incorporated ¼¯³Éµç·£¨IC£© AP130-25RG-7

¡¡¡¡Diodes Incorporated ¼¯³Éµç·£¨IC£© AP130-25RG-7

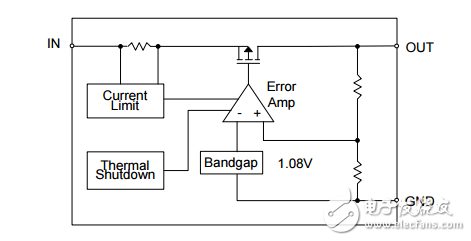

¡¡¡¡The AP130 is a 300mA£¬ fixed output voltage£¬ low dropout linear regulator. The device includes pass element£¬ error amplifier£¬ band-gap£¬ current-limit and thermal shutdown circuitry. The characteristics of low dropout voltage and less quiescent current make it good for some critical current application£¬ for example£¬ some battery powered devices. The typical quiescent current is approximately 50?A from zero to maximum load. Due to internal flexible design£¬ results in extensively fixed output voltage versions and make it convenient to use for applications. Built-in current-limit and thermal-shutdown functions prevent any fault condition from IC damage.

¡¡¡¡Input Voltage Range£º 2.7V to 5.5V ? Dropout Voltage 400mV at 300mA Output Current ? Guaranteed 300mA Output Current ? Internal RON = 1.5? PMOS Draws No Base Current ? Low Quiescent Current 50?A ? Output Voltage£º 1.5V/1.8V/2.0V/2.5V/2.8V/3.0V/ ? 3.3V/3.5; Accuracy 2% ? Fast Transient Response ? Good Load Regulation ? Current Limit and Thermal Shutdown Protection ? Short Circuit Current Fold-Back ? Lead Free Packages£º SC59£¬ SC59R£¬ SOT89-3L£¬ and SOT89R-3L ? SC59£¬ SC59R£¬ SOT23£¬ SOT89-3L£¬ and SOT89R-3L£º Available in ¡°Green¡± Molding Compound £¨No Br£¬ Sb£© £¨Note 9£© ? Lead Free Finish/ RoHS Compliant £¨Note 1£©
